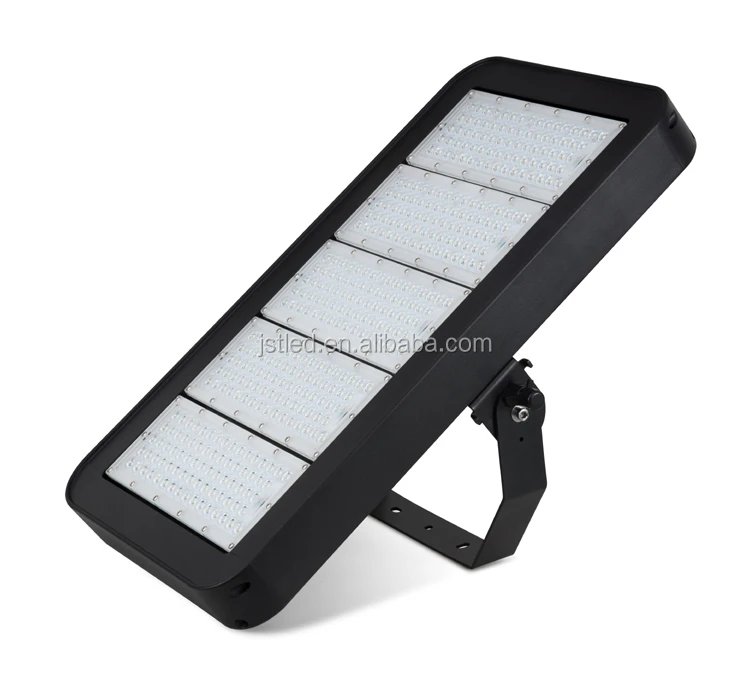

High power 300W led flood light 400W stadium light IP66

FOB Reference Price:Get Latest Price
  • 1 - 99 Pieces
    US $248.00
  • >=100 Pieces
    US $223.00
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Flood Lights
LED Light Source:
SMD3030 / 5050
Input Voltage(V):
AC90-305V
Lamp Luminous Flux(lm):
39000
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
80
Color Temperature(CCT):
2700-6500K
Beam Angle(°):
25/40/80/120/30x70/70x120
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP66
Certification:
CE, EMC, LVD, RoHS, SAA
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JST / OEM
Model Number:
JST-FGL-300W
IP / IK:
IP66 / IK10
Driver:
Warranty 5 years
Lamps Size:
L612xW333xH56mm
LED Quantities:
385Pcs (77x5Module)
Power Range:
100/150/200/250/300/400/500/600W
Offer:
IES Files and Dialux design
Finish Color:
Black/White/Sliver
Keyword:
300W led flood light
Product Name:
Multifunctional led flood light
Application:
Tunnels / Warehouses / Production halls
Lamp Power(W):
300
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details

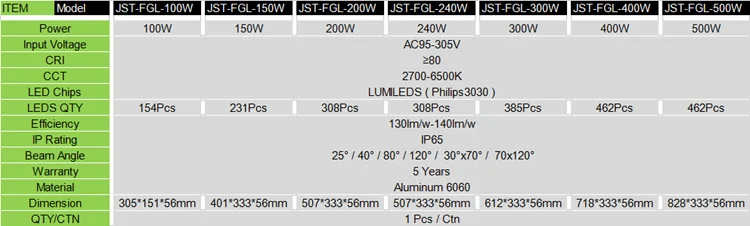

JST-FGL Series LED Flood Light 100-600W
Packing Details:
100W : Carton Size 35*42.5*18.5CM Gross Weight: 6.4KG 1PCS/CTN
150W : Carton Size 47*42.5*18.5CM Gross Weight: 8.2KG 1PCS/CTN
200W : Carton Size 56*42.5*18.5CM Gross Weight: 10KG 1PCS/CTN
240W : Carton Size 66*42.5*18.5CM Gross Weight: 12KG 1PCS/CTN
300W : Carton Size 66*42.5*18.5CM Gross Weight: 12KG 1PCS/CTN
400W : Carton Size 77*42.5*18.5CM Gross Weight: 14KG 1PCS/CTN
Port
Shenzhen
Lead Time :
Sample: 3-5 days, Bulk order: 7-10 days



Product Features



High power 300W led flood light 400W stadium light IP66



Power 100-600W with IP66 and IK08 rated


5 year warranty offers complete peace of mind


Lens material: UV-stabilized polycarbonate(PC) from Bayer


Extruded heat sink, made of 6063 aluminum with 99.99% purity


Beam angles:25°,40°asymmetrical,40°,80°,120°,30x70°,70x140°


1.6mm MCPCB,thermal paste with conductivity of 2.0 from Dow Corning



Die-cast aluminum housing,polyester powder painted finish, corrosion resistant


Modular design, 77pcs 1.2W LEDs per module with total input power from 50-70W





FGL-5module 2].jpg

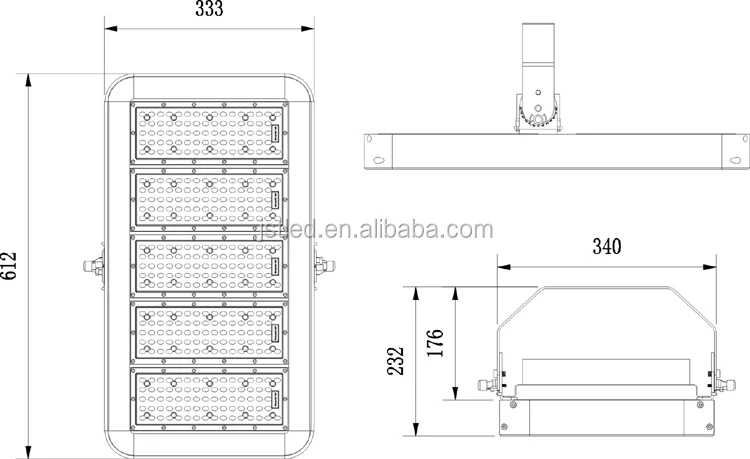

FGL-5 module Size.jpg



Product Describution

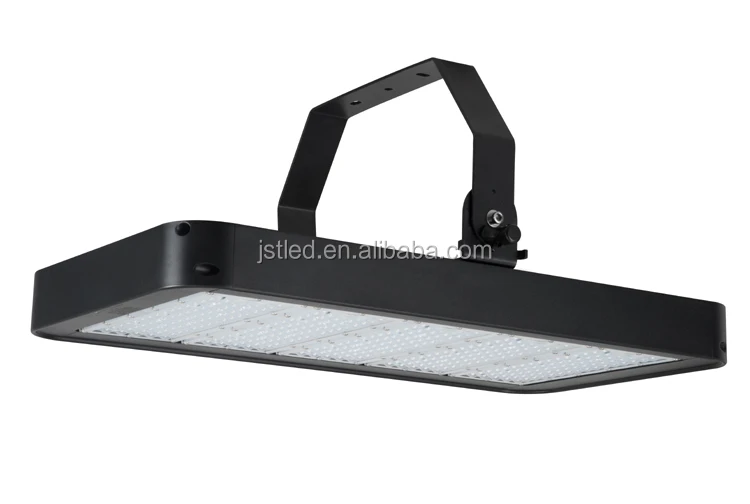

High power 300W led flood light 400W stadium light IP66



LED Flood light: JST-FGL-300W Using 6060 aluminum, thermal conductivity, corrosion resistance; owns unique and attractive design, whose heat sink structure perform excellently due to large area and therefore ensure the LED a long life span, high brightness 3030 LEDs, with high quality exterior driver. This flood light is applicable for plant with high roof, workshop, warehouse, exhibition hall, gymnasium,bus/railway station, airport, shopping mall, outdoor buildings, etc. Various easy installations for option, good heat sink, brilliant quality, more than 50,000 hours life span

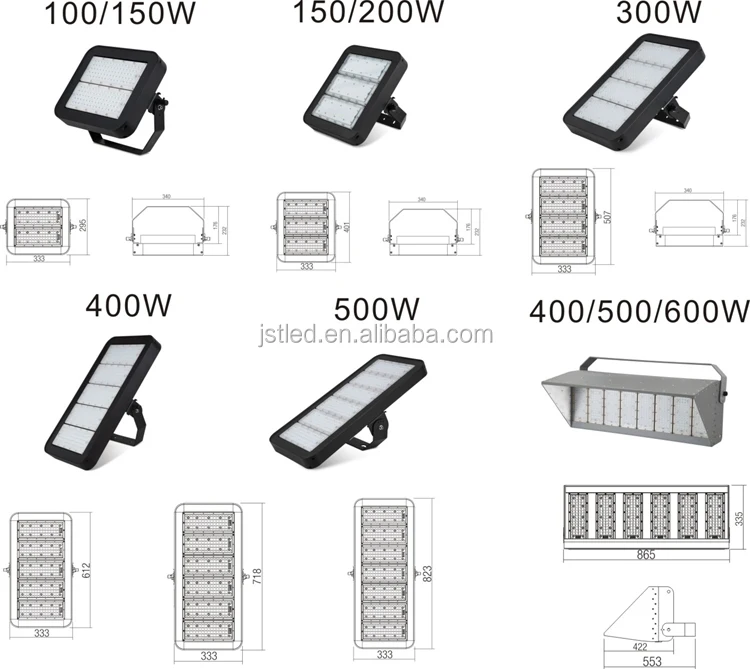

FGL-All size.jpg

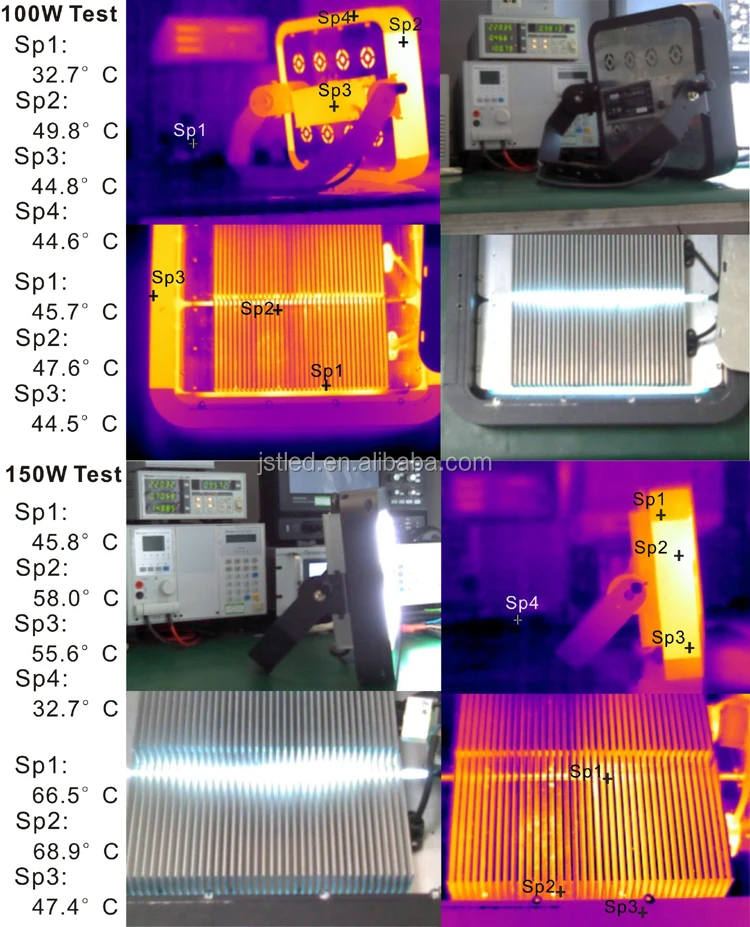

FGL Hest Test.jpg

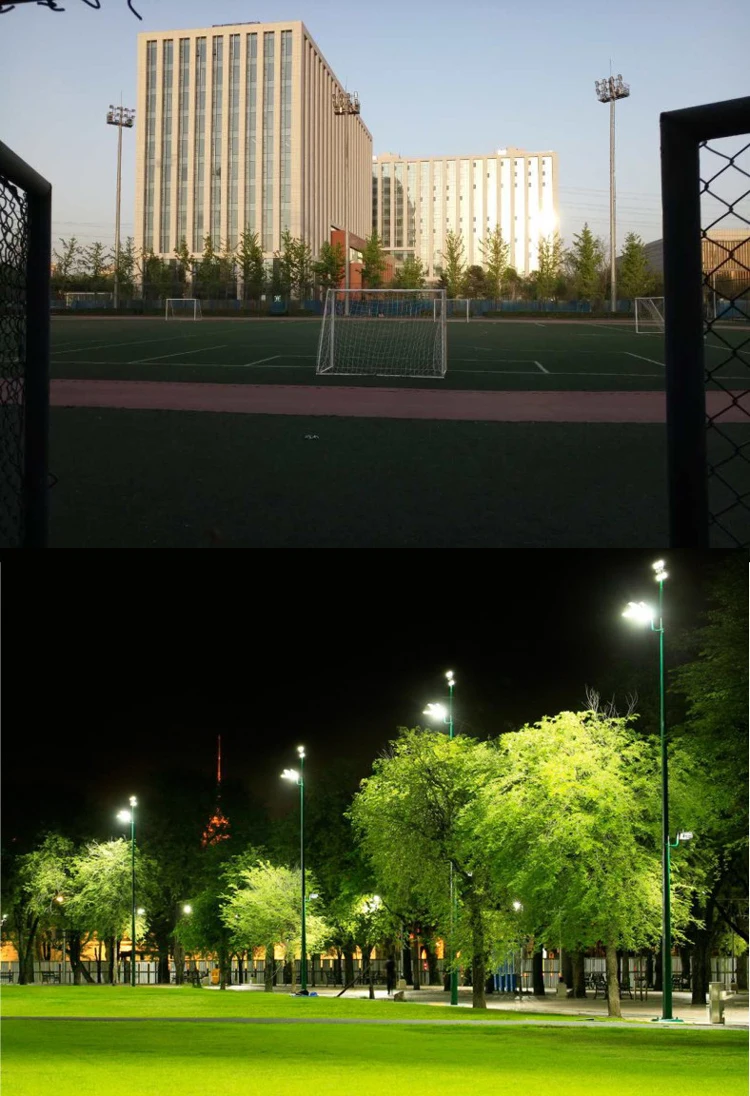

Product Applications



High power 300W led flood light 400W stadium light IP66



Widely used in large sports field lighting, football, basketball, golf and tennis court, racetrack, badminton, roads, high-rise buildings, tower lights, also be applied in large square, airport, commercial building, construction engineering, farm, amusement parks, parking lots, harbor, industrial buildings, and other special lighting environmen

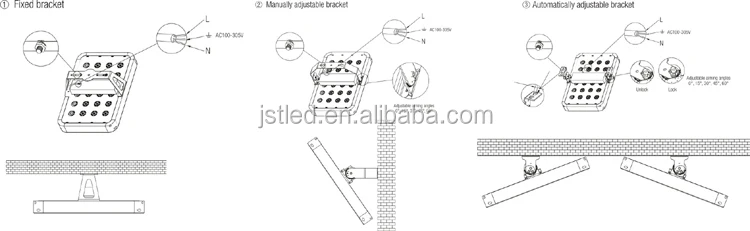

Product Installation



High power 300W led flood light 400W stadium light IP66



Used fixed bracket for installation

Used manually adjustable bracket for installation

Used automatically adjustable bracket for installation

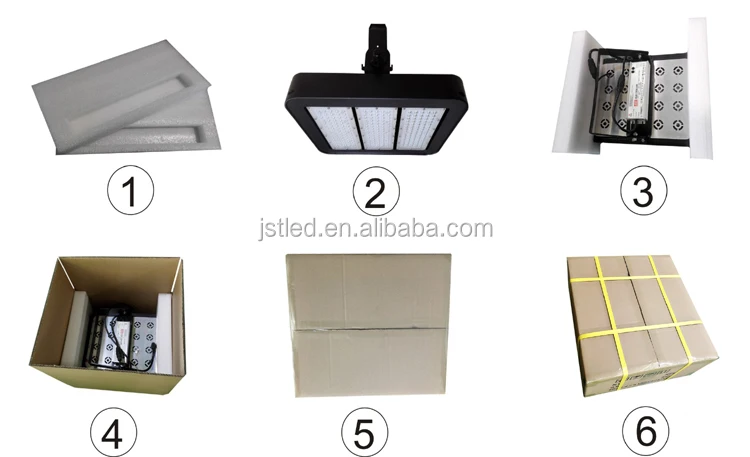

High power 300W led flood light 400W stadium light IP66 Packaging



Both sides use thick foam, solid packaging
Custom thick cardboard boxes, super compression
Reinforcement with corner protection strip and industrial tape
JST-Use strong and professional package for safety transportation
