CE RoHS SAA TUV CB Certificate Aluminium Housing Dimmable LED Track Lighting, COB LED Tracklights 12W 15W 25W 35W

FOB Reference Price:Get Latest Price
US $23-27 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Track Lights
LED Light Source:
Luminus
Warranty(Years):
3
Input Voltage(V):
AC220-240V
Lamp Luminous Flux(lm):
2500
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
85
Color Temperature(CCT):
3000K-5000K
Working Temperature(℃):
-20 - +50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
Certification:
C-tick, CCC, CE, EMC, GS, RoHS, SAA
Base Type:
Internal Driver
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JST/OEM
Model Number:
JST-KO-25W
Power range:
12W/15W/25W/35W
Beam angle:
15 /24 /36
Type:
1 Phase/ 3 Phase
Color:
Black\white
Material:
Die-casting Aluminum
Diameter:
60mm/85mm
Lamp height:
155mm/175mm
Keyword:
Led cob tracklight dimmable
Packing:
JST Standard carton
Application:
Super market,/Museums/clothing store etc
Lamp Power(W):
25
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
JST-KO Series Led tracklight 12-35W
Packing Details:
12W: Carton Size: 34*37*33CM Gross Weight:14KG 24PCS/CTN
15W: Carton Size: 34*37*33CM Gross Weight:14KG 24PCS/CTN
25W: Carton Size: 34*37*33CM Gross Weight:14KG 24PCS/CTN
35W: Carton Size: 37*28*30CM Gross Weight:14KG 12PCS/CTN
Port
Shenzhen
Lead Time :
Samples 3-5days Bulk order 10-15days
Product Overviews

CE RoHS SAA TUV CB Certificate Aluminium Housing Dimmable LED Track Lighting, COB LED Tracklights 12W 15W 25W 35W










Product Description



CE RoHS SAA TUV CB Certificate Aluminium Housing Dimmable LED Track Lighting, COB LED Tracklights 12W 15W 25W 35W

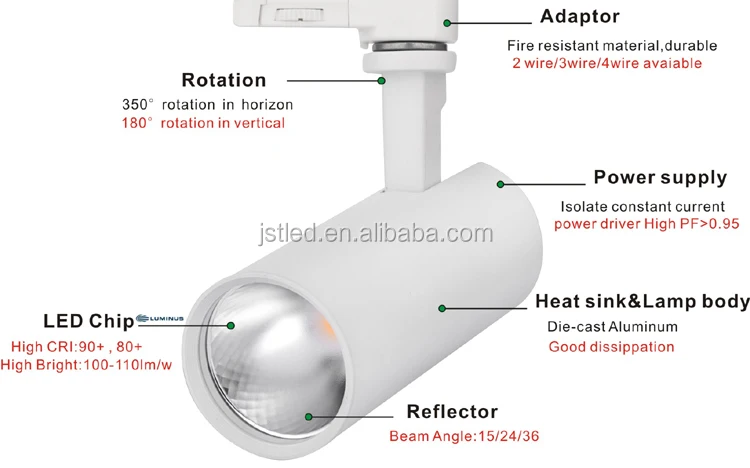

TR-KO Series originally researched and developed by JST, die-casting high-rank aluminum integrated heat sink. Driver shell of fire-proof PC material, international top COB Luminus chip, combined with JST exclusive optical system of glare-free lens , standard driver originally researched and developed by JST, stable specifications, glare-free, good heat sink, brilliant quality, more than 40,000 hours life span.

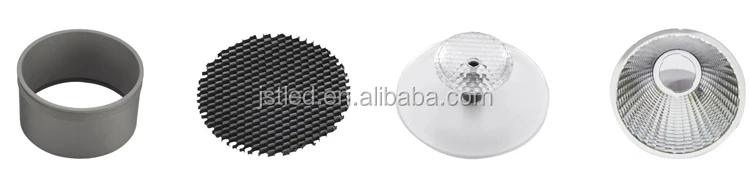

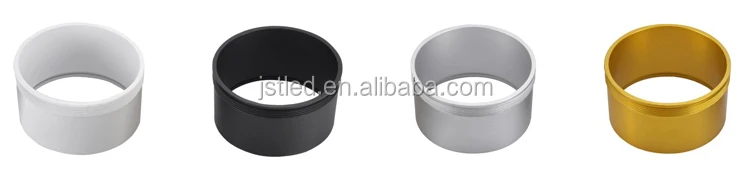

More accessories you can choose:




















ModelPowerLed chipsDriverCRICCTInput VoltageEffciencyBeam AngleWarrantyDimmention(mm)
JST-KO60A12WLUMINUSNormal853000K-5000KAC220-240V1080LM15/24/36360*H155*L165

JST-KO60A

15WLUMINUSNormal853000K-5000KAC220-240V1350LM15/24/36360*H155*L165
JST-KO60A25WLUMINUSNormal853000K-5000KAC220-240V2250LM15/24/36380*H155*L210
JST-KO85A35WLUMINUSNormal853000K-5000KAC220-240V3150LM15/24/36385*H175*L168
Product Application



CE RoHS SAA TUV CB Certificate Aluminium Housing Dimmable LED Track Lighting, COB LED Tracklights 12W 15W 25W 35W



. Super market, Museums                               . Clothing store, furniture store



. High end galleries and clubs                         . Brand business offices,counters




Product Installation



CE RoHS SAA TUV CB Certificate Aluminium Housing Dimmable LED Track Lighting, COB LED Tracklights 12W 15W 25W 35W



1.Please install the related track rail before install the light (Picture one)



2.Aim the track head to the track rail then push up, make sure the track head are total match into the track rail(Picture two)


3.After install the track head into the track rail, rotate the connector spindle 90°as below(Picture three)
